Seamless, endless;
exactly to size.

Rotary screens ready to print, in the 25–195 mesh range.

Request a quote See the product

0104

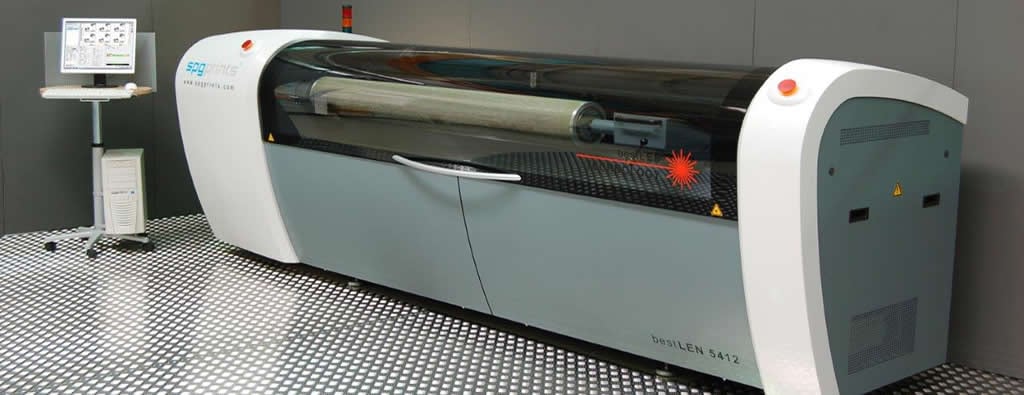

A rotary screen cylinder being engraved on a laser engraving machine

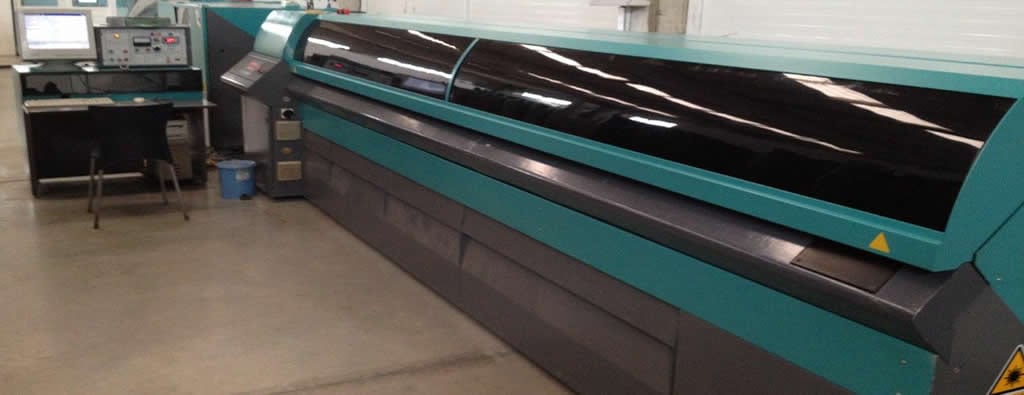

Laser engraving · Cylinder line

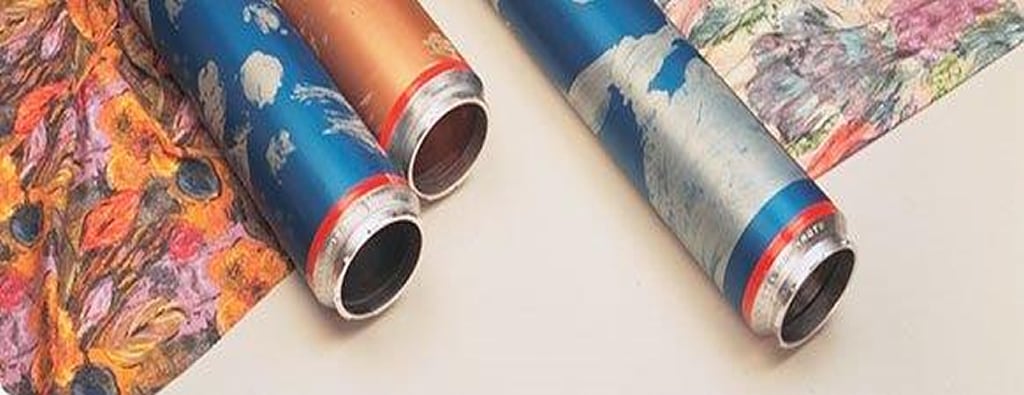

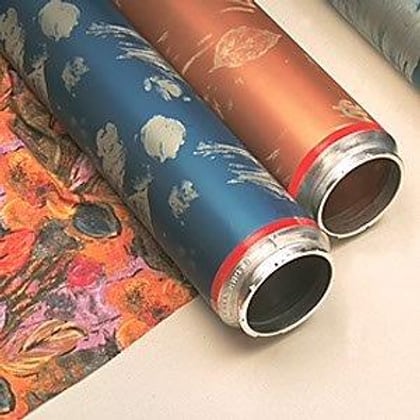

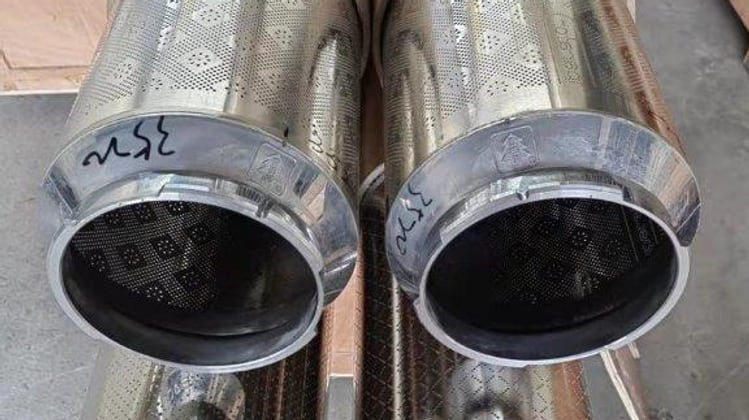

Laser-engraved rotary printing screens carrying their patterns, beside the printed fabric Open ends of nickel rotary screens showing the mesh perforation and the marked circumference

The repeat closes without a seam — as the cylinder turns, the pattern continues rather than restarts

Technical summary

640–1010mmRepeat sizes
25–195Mesh range
3,500mmMaximum screen length

Product

Four products,
one address.

Rotary printing screens. Every stage — colour separation, engraving, lacquer, end-ring fitting, packing — happens in our Denizli plant with the same team.

01Screens

Rotary printing screens

Mesh and lacquer are prepared to suit the design, then matched to the laser engraving lines. Delivered with or without heads.

  • Wide mesh range
  • With / without heads
  • Colour separation included

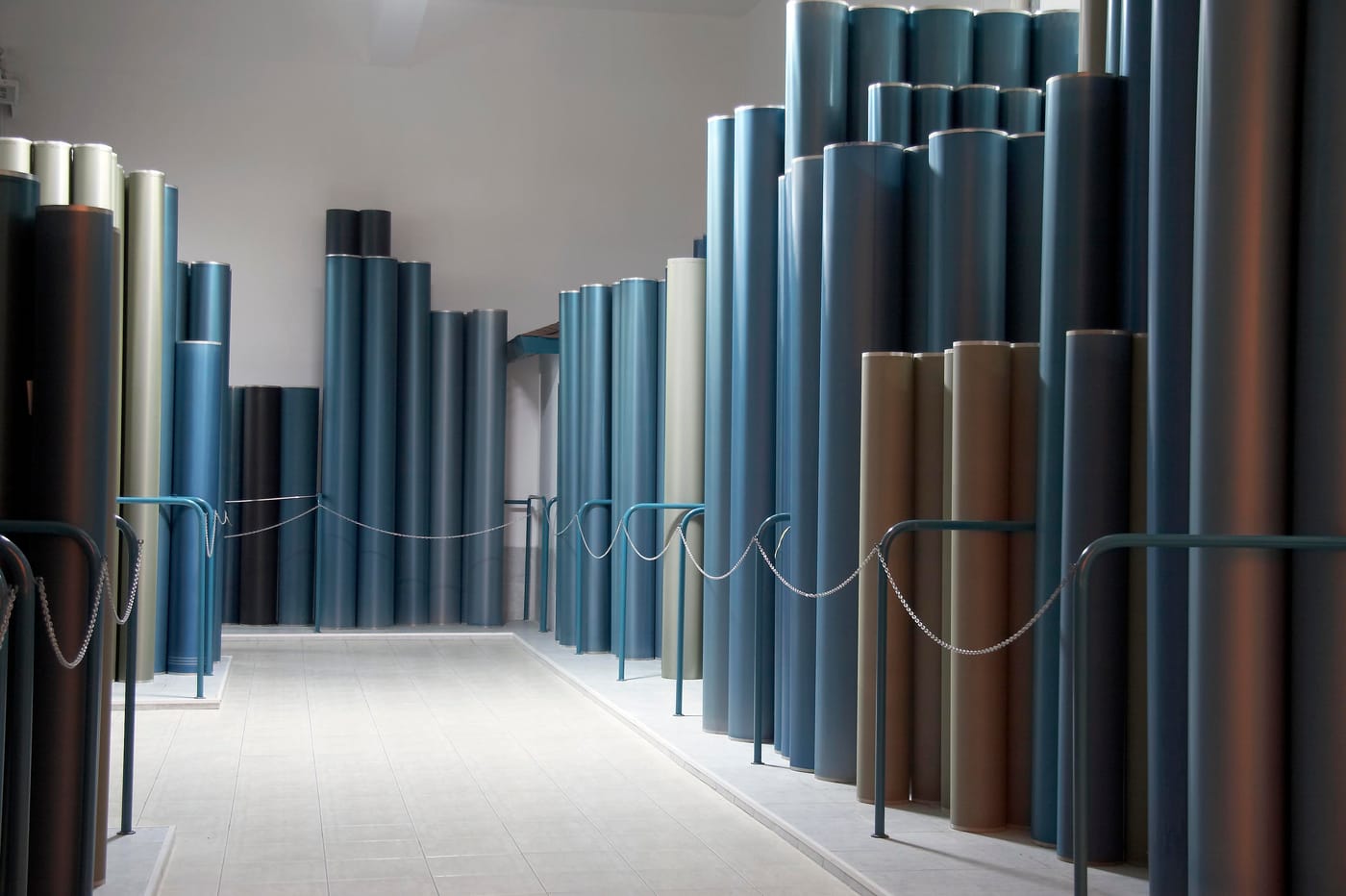

Finished rotary screens lined up before dispatch
02Galvanic

Galvanic screens

A seamless nickel body. Turns through the repeat without leaving a join, in circumferences from 640 to 1010 mm.

  • Seamless nickel
  • 640–1010 mm repeat
  • 25–195 mesh

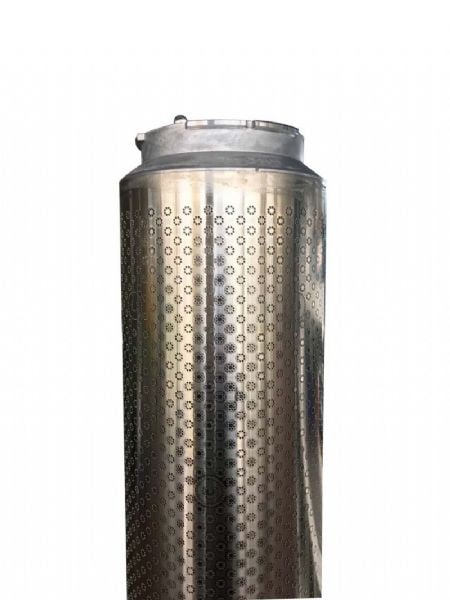

The engraved surface of a nickel rotary printing screen
03Mesh

Printing mesh

Euromesh polyester printing mesh. Screen-printing mesh in white and yellow, delivered on the roll.

  • Euromesh
  • White and yellow
  • On the roll

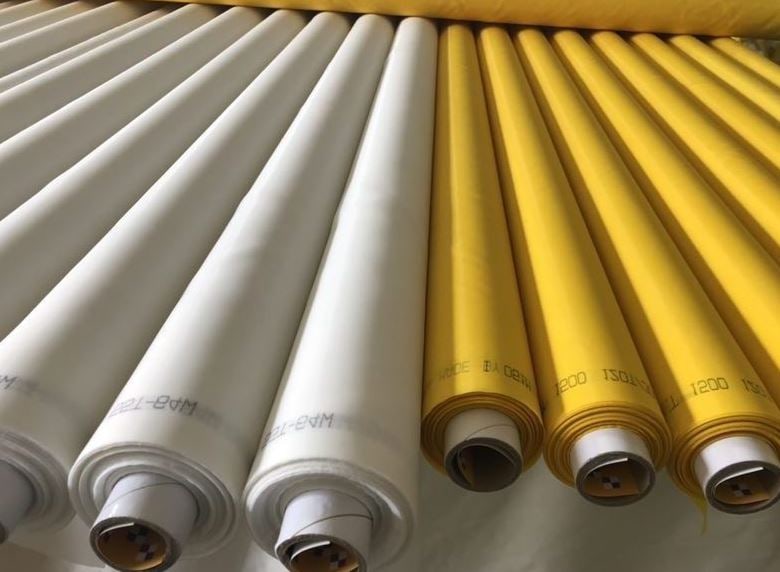

Rolls of white and yellow Euromesh polyester printing mesh
04Heads

Screen heads

The end ring that couples the screen to the printing machine. Four sizes for Stork and Reggiani, with fitting available.

  • 640 mm Stork
  • 819 / 914 / 1018 mm Reggiani
  • Fitting included

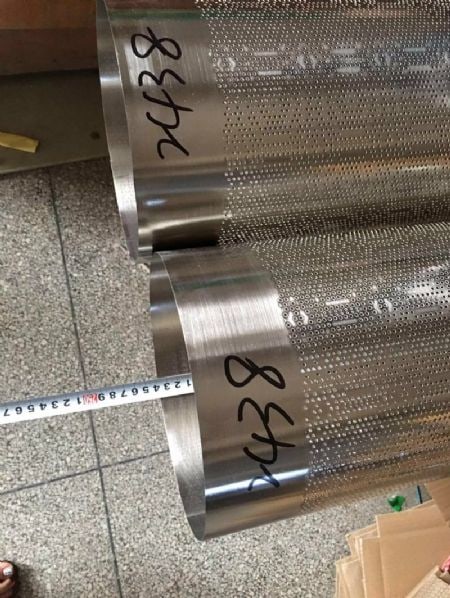

The mouth of rotary screens where the head is fitted

Artwork to dispatch

Five steps,
one roof.

Colour separation and engraving both happen here. Nothing changes hands in between, so lead times stay short and responsibility stays in one place.

  1. 01 / Artwork

    Artwork intake

    Your original is checked for printability and a lead time is given. If you don't have a design, our studio creates one.

  2. 02 / Separation

    Colour separation

    Separated against your plant conditions, paste system and machine line-up. The mesh is set here.

  3. 03 / Engraving

    Laser engraving

    Circumference, shore and coating are set by material, then the job goes to the right laser line.

  4. 04 / Approval

    Customer approval

    The work goes to you for approval by FTP, e-mail or courier before engraving. Production does not start until it is approved.

  5. 05 / Dispatch

    Packing and delivery

    Packed to suit circumference and length, then shipped by courier or freight forwarder.

Read the process in full

Equipment

Machines
and software.

Engraving quality depends as much on how accurate the colour separation is as on how precise the laser is. We keep both in house.

Laser engraving lines
STK LEN-3000Rotary textile screens
STK BESTLEN-5113Rotary textile screens
Colour separation and design
STK 4000 CADTextile colour separation
BEST IMAGE CAD–CAMTextile colour separation
Adobe PhotoshopLatest version · all lines

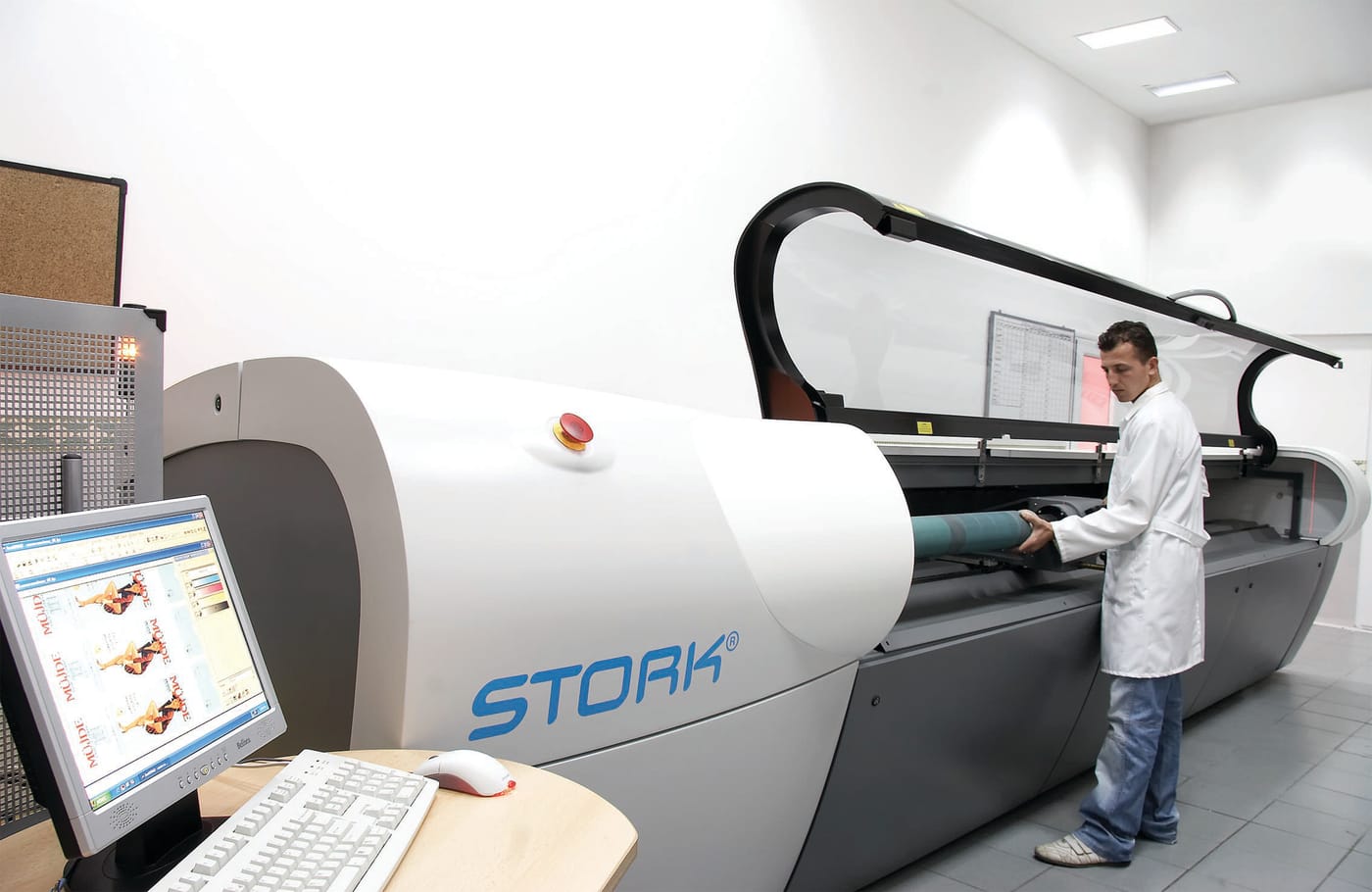

Operator at the control screen while a cylinder is engraved
Engraving line — parameter check before production

1996 to today

Every investment,
a new industry.

Our head office is in İzmir and our plant is in Pamukkale, Denizli — a 5,000 m² site with 2,600 m² under roof. Alongside the domestic market we supply Europe and the Middle East.

1996

Founded to supply rotary screens to textile printers. Colour separation and laser-engraved rotary printing screens.

About the company

Send us the dimensions, we'll send the price.

Industry, material and size are enough. No artwork needed at the quotation stage.
